AC EV OPLADER MED Stik og Solcelle styring

AC EV OPLADER MED Stik og Solcelle styring

6.250,00 DKK
6.250,00 DKK
Udsalg Udsolgt
Ink. moms
Model

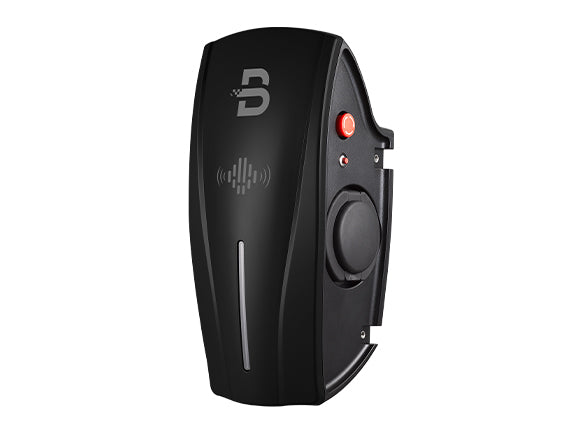

AC EV CHARGER WITH SOCKET

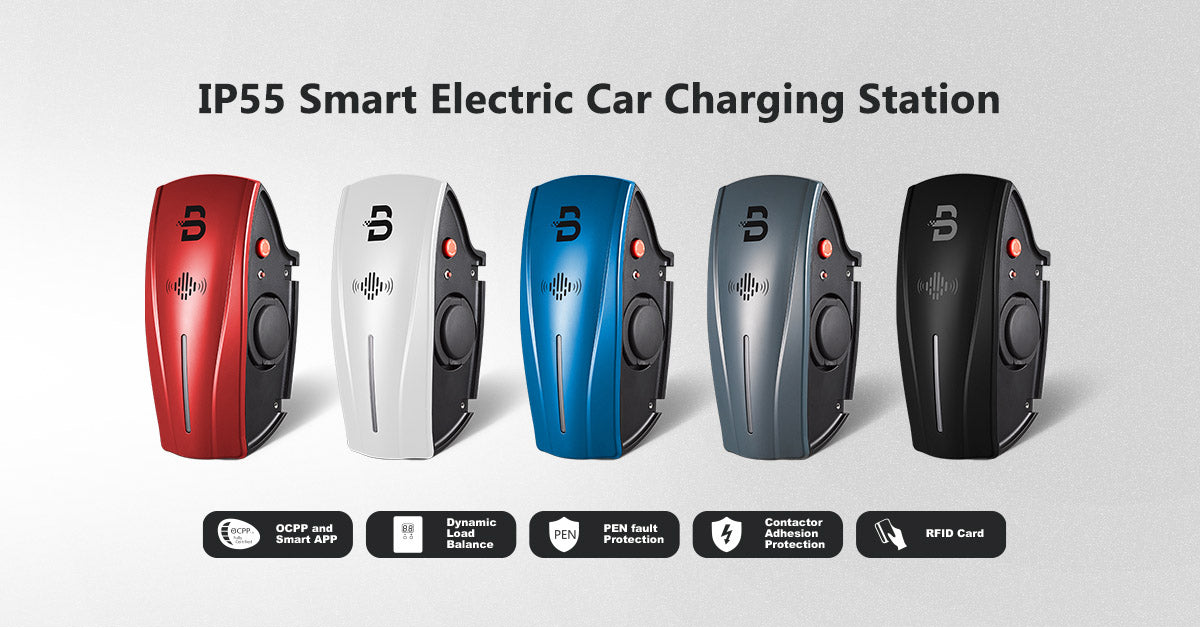

BENY Smart EV Charger with Type 2 (IEC 62196-2) Plug Socket IP55 Electric Vehicle Charging Station EV Wallbox CE Certified

Highlights :

  • 3-Phase from 4.1kW to 22kW
  • Full Protection
  • Dynamic Load Balancing (optional)
  • Open Charge Point Protocol (optional)
  • Customize All Types of Connectors
  • Smart Version with APP (optional)
  • 3 Years Warranty
  • rohs
  • CE-Certified icon
  • CB icon
  • RCM icon
  • ocpp 1 6 icon

ENRICHING EV CHARGER FEATURES

Open Charge Point Protocol （OCPP）

Allow EV charging stations and central management systems from different vendors to communicate with each other.

Dynamic Load Balancing (DLB)

Consumes the house’s power supply efficiently without costly upgrades to your building’s grid connection.

Customize All Types of Connectors

Compatible with all electrical cars manufactured in the world.

With Emergency Stop Switch

In case of problems, an emergency switch can immediately shut down our EV charger.


Self-developed OCPP Platform EVsaas

EVsaas is a EV chargers and charging station management system developed by BENY. Suitable for EV charging station operators, achieve revenue through simple setup.

PEN Fault Detection

Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.

Compatible with Solar PV System

Use our Solar DLB Box to charge an EV with your own solar-generated electricity.

Built-in Type B RCD for Leakage Protection

Each of our EV chargers protects everyone from the dangerous electrical ground.

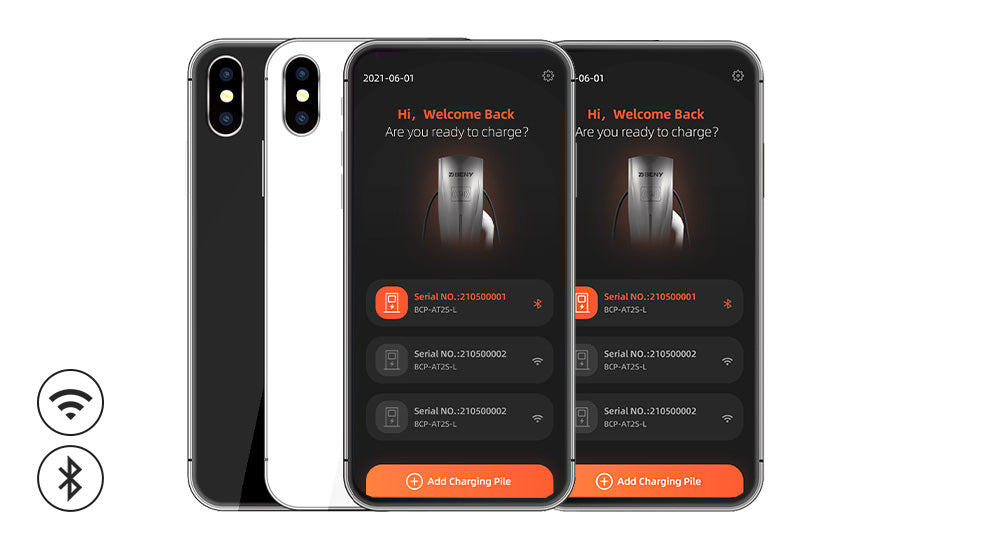

CONTROL YOUR CHARGER WITH Z-BOX APP

  • Real-time monitoring
  • Scheduled charging
  • Multiple function settings

Max current: 32A
Working voltage :
AC(400V±10％ )
3 Phase
Max power: 4.1-22KW
Working frequency: 50/60HZ
IP55
3 years warranty
*BT1N:Autostart or BT2N:RFID
*Socket type

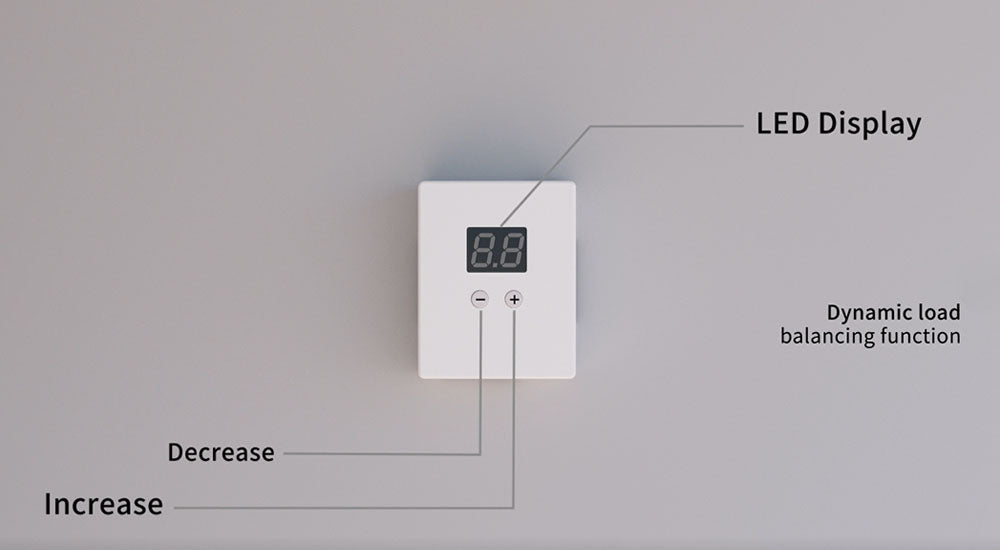

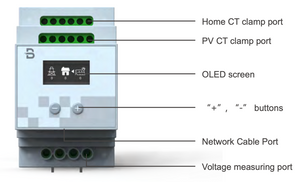

*DLB Box(BCP-DLB-03) and CT
clamp,5m ethernet cable
*Wifi and Bluetooth Connection



RFID card to charge automatically

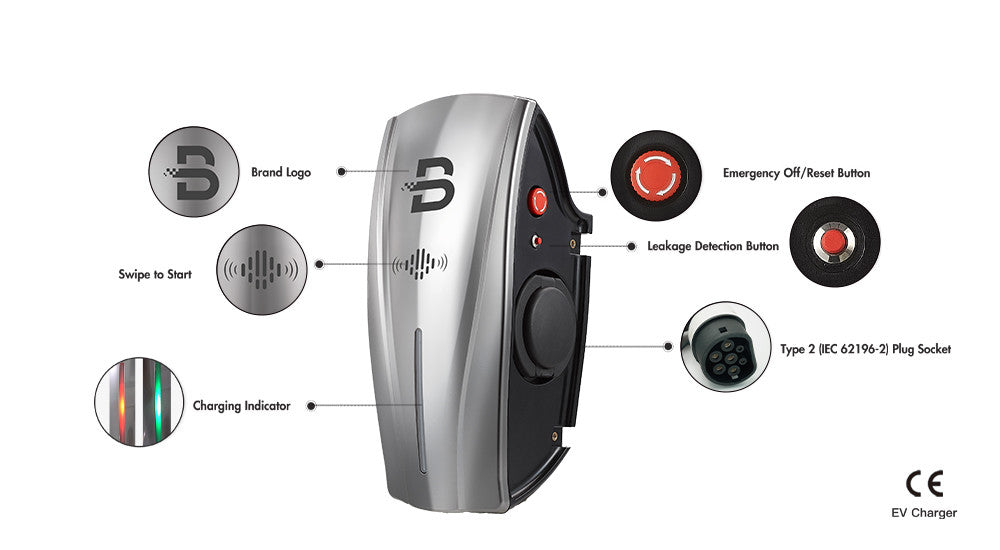

 Type 2 (IEC 62196-2) plug socket without cable

 Built-in Type B RCD for Leakage Protection

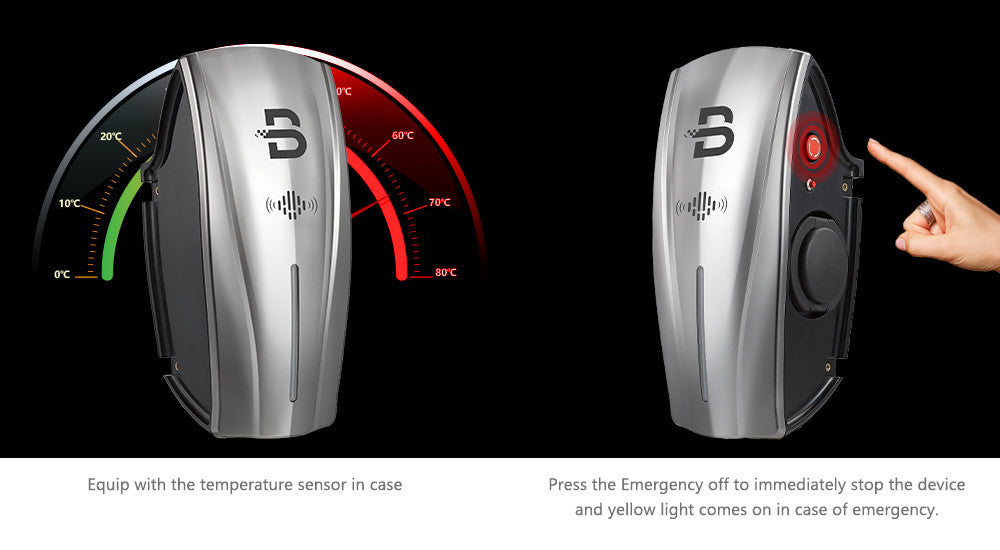

  • Over Temperature Sensor
  • Clip-on Grid Current Sensor
  • LED Ring Status Indication
  • With Emergency Stop Switch

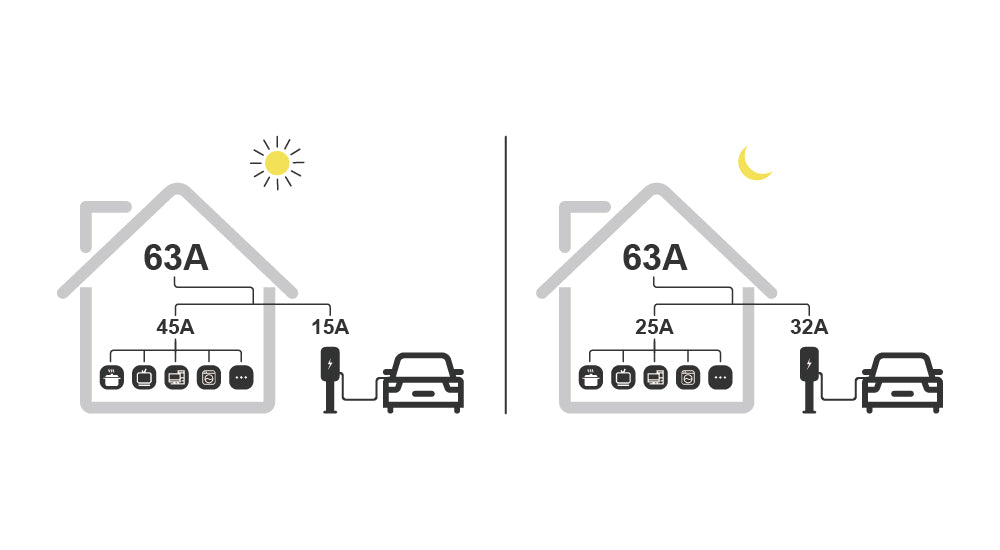

Dynamic Load Balancing DLB (Dynamic Load Balancing) is available in the BCPM series AC EV Charger for home use, when the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load. Set the Max current value of the main line on the DLB box. The charger will read this current value and automatically adjust the charging current (6A-32A) according to the idle load quota, so that the total household current will not be overloaded due to charging. This function can effectively use the power supply without providing additional power for the charging or home line update.



SPECIFICATION

Electrical
Charging capacity 1.3kW-7.4kW / 4.1kW-22kW
Charge mode Mode 3 (IEC 61851-1)
Output power Selectable 1-phase or 3-phase, 230-400V



6 A to 32 A, 50-60 Hz
Connector options Fixed cable type 2 plug or type 2 Socket
Fixed cable length 6m (18 ft)
Cable Entry Rear or bottom
Protection and certification
Build-in RCD TYPE A + DC6mA leakage sensor built-in

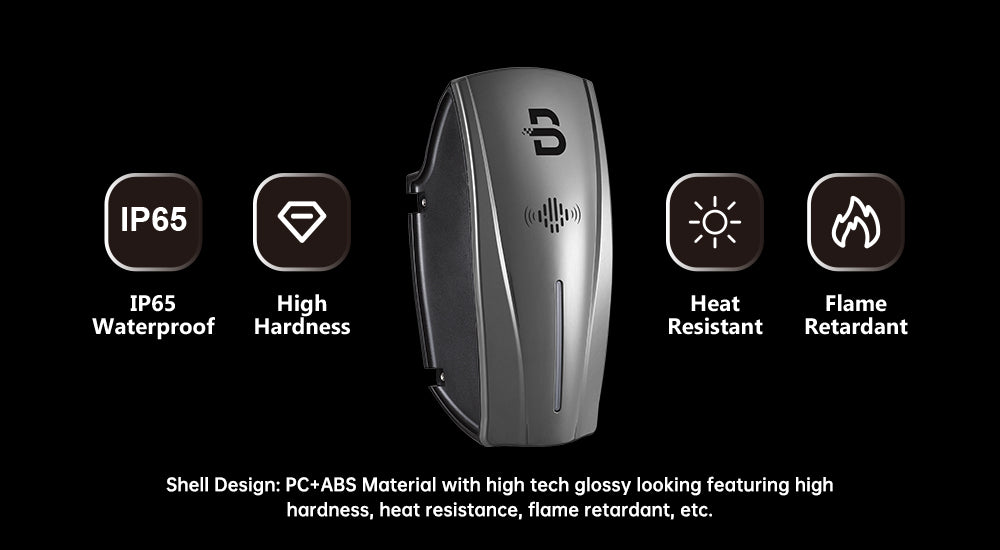

With Cable IP65, IK07
Socket IP55, IK07
Housing fire ratings V0
Operating temperature -25 – +55℃
Compliance IEC61851-1, IEC61851-21-2,



IEC61000-4

CE EMC EU/2014

CE Low Voltage EU/2014/35
Certificate CE, CB, RCM
Connectivity
Authorization Auto-start standard / RFID card option
Status indication LED ring
Charging protocol OCPP 1.6J optional
WLAN communication Wi-Fi / Bluetooth 4.2 option
Mechanical
Housing Polycarbonate
Dimension W169 x H380 x D151 mm
Mounting Wall or Pole
