Eastron SDM120CTMODBUS-MID

• SDM120CT-Modbus - 1/5A Current Transformer Input. 2 Pulse outputs, RS485 Modbus communication

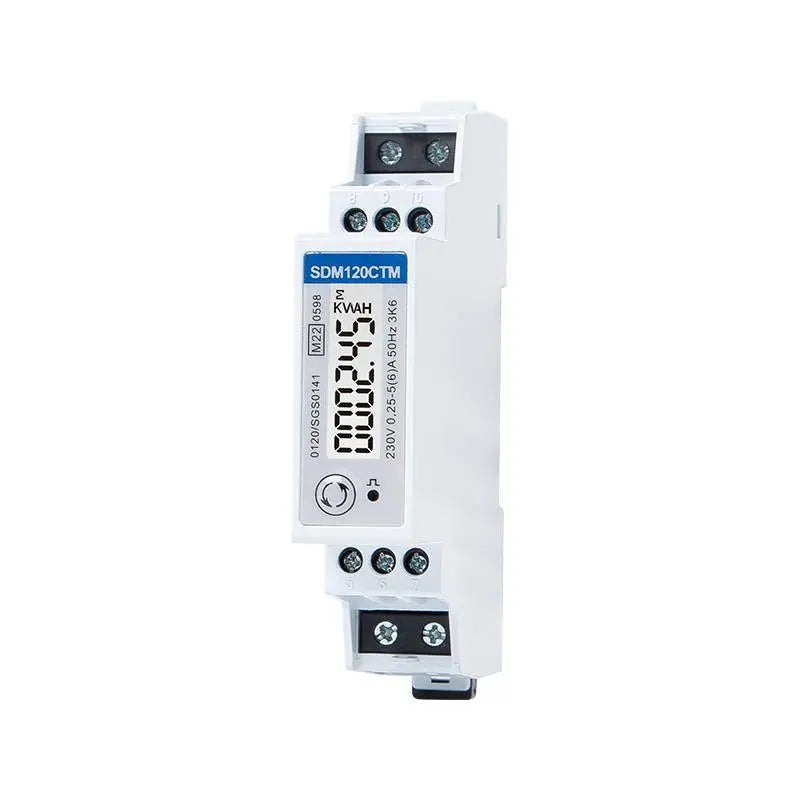

SDM120CT-Modbus-MID CT Operated Single
Phase Multifunction Dinrail Meter (Net kWh)

The SDM120CT Modbus is an advanced multifunction single phase energy monitoring solution. With variants for different outputs such as Pulsed, RS485 RTU Modbus and Mbus.

Equipped with scroll display button for ease of navigation through the various parameters. Backlit LCD display for clear indication in all conditions. Housed for DIN rail mounting, IP51 protection and 5A current transformer operated

Selectable measurement modes using our free configurations software for kWh display, Total kWh (Import + Export), Import kWh and Net kWh (Export-Import)

Features

• Single Phase 5A current transformer operated
• MID Certified (B and D)
• Bi-directional measurment for kW and kWh
• Configurable pulsed output (Import, Export, Nett kWh)
• RS485 Modbus or M-bus variants available
• Multi parameter measurments
• Simple set up and operation

Displayed Parameters

• Active energy (kWh)
• Reactive energy (kVarh)
• Active power (W)
• Reactive power (Var)
• Apparent power (VA)
• Voltage (V)
• Current (A)
• Power factor
• Max Demand
• Frequency
